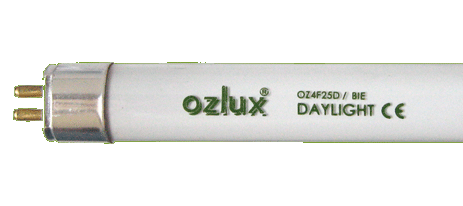

T5 Fluorescent Tube

Ozlux T5 Fluorescent Tube is an efficient Fluorescent lighting system available for various applications. Used together with our Ozlux Retrofit or Linear System, it offers 40% in energy savings. Even with its smaller form factor, these lamps offer high luminous efficacy of up to 95 lumens/W and offers an extended operation of 20,000 hours.

EFFICIENT & DURABLE
• High lamp efficacies up to 95lm/W
• Efficient Tri-Phosphor Coating
• Similar light output with T8 system
• Extended operation of 20,000 Hours

MULTI-APPLICATIONS
• Suitable for Instant ON without flicker
• Wide operating and colour temperature

TECHNICAL
• High lamp efficacies up to 95lm/W
• Tri-Phosphor for excellent spectrum rendering

GREEN TECHNOLOGY
• Low energy consumption
• Low mercury content
• Less heat dissipation

Techinical Data & Specification

Product Code	Description	Efficiency (LM/W)	Nom. Wattage (W)	Color Temp. (K)	Approx. Lumens (LM)	Approx. Lifespan (H)	CRI
OC4F25D	4Ft T5 Tube 25W Daylight	95	25	6500	2900	20,000	85

OC4F25C	4Ft T5 Tube 25W Cool White	95	25	6500	2900	20,000	85

OC4F25W	4Ft T5 Tube 25W Warm White	95	25	2700	2900	20,000	85

OC2F14D	2Ft T5 Tube 14W Daylight	95	14	6500	1450	20,000	85

OC2F14C	2Ft T5 Tube 14W Cool White	95	14	6500	1450	20,000	85

OC2F14W	2Ft T5 Tube 14W Warm White	95	14	2700	1450	20,000	85

* Various system configuration is possible. Refer Product Naming Convention for details.

	Efficiency	Ozlux T5	Conventional T8

	Total Wattage	25	45
	x 365 Days with 12 hours.day	4380	4380
	Total Consumption (kWh)	109.5	197.1
	x kWh rate of USD$0.10	$10.95	$19.71
	x 1000 units of lamps	$10,950.00	$19,710.00
	Total Energy Cost Savings*	$8,760.00
*Your actual savings may vary depending on energy costs in your geographic location.

PRODUCT NAMING CONVENTION
AA-BB-CC-D

STANDARDS COMPLIANCE

AA
OC

BB
2F
4F
2L
4L

CC
14
25

D
D
C
W
X

PRODUCT CODE
Standard

TUBE CATEGORY
2 Feet Retrofit System
4 Feet Retrofit System
2 Feet Linear System
4 Feet Linear System

WATTAGE
14 Watts
25 Watts

COLOUR
Daylight (6500K)
Cool White (4200K)
Warm White (2700K)
No Tube Fitted

Dir. 2002/95/EC	Compliance to RoHS Regulations
CE Compliance	Conformity to European Compliance General (Conformité Européenne)

DIMENSIONS
4 Feet Tube (mm) - 1149 (L) x 16 (D) 2 Feet Tube (mm) - 549 (L) x 16 (D)

PACKING DATA
Units per box - 100 units
