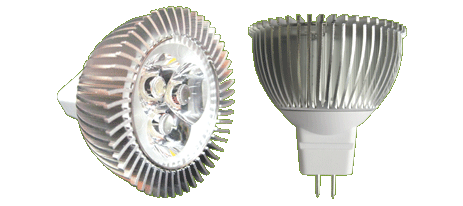

MiniSPOT LED 3W

Ozlux MiniSPOT LED 3W is a direct cost saving replacement for conventional MR16 lamp. While it uses LED illumination, there is no heat generated through its light source and has lower energy consumption. With LED technology, the lifespan is extended which provides minimal replacement.

EFFICIENT & DURABLE
• Direct replacement for Halogen MR-16
• Less heat dissipation & low energy consumption
• Long lifespan of 50,000 Hours

MULTI-APPLICATIONS

•	Suitable for Commercial Buildings, Showrooms, Store Display, Hotels and Restaurants
•	Wide operating and colour temperature

TECHNICAL
• Optimum Power Factor
• Low Total Harmonic Distortion
• Excellent voltage tolerance level

GREEN TECHNOLOGY
• Low energy consumption
• Low mercury content
• Less heat dissipation

Techinical Data & Specification

Product Code	Description	Nom. Wattage (W)	Voltage (Vac)	Color Temp. (K)	Approx. Lumens (LM)	Approx. Lifespan (H)	CRI	Base Holder
OZES03DAM1M30	MiniSPOT 3W Daylight	3	12	6000	270	40,000	≥80	MR16

OZES03WAM1M30	MiniSPOT 3W Warm White	3	12	3000	270	40,000	≥80	MR16

OZES03DBE2M30	MiniSPOT 3W Daylight	8	230	6000	270	40,000	≥80	E27

OZES03WBE2M30	MiniSPOT 3W Warm White	3	230	3000	270	40,000	≥80	E27

* Various system configuration is possible. Refer Product Naming Convention for details.

	Efficiency	Ozlux PAR38	Conventional PAR

	Total Wattage	3	50
	x 365 Days with 12 hours.day	4380	4380
	Total Consumption (kWh)	13.1	109.5
	x kWh rate of USD$0.10	$1.31	$10.95
	x 1000 units of lamps	$1,314.00	$10,950.00
	Total Energy Cost Savings*	$9,636.00
*Your actual savings may vary depending on energy costs in your geographic location.

PRODUCT NAMING CONVENTION
OZ-AA-BB-C-D-EE-FFF

DIMENSIONS

AA
ES

BB
03

C
D
W

D
A
B

EE
M1
E2

FFF
M30
M60

PRODUCT CODE
Spot Light

WATTAGE
3 Watts

COLOUR
Daylight (6500K)
Warm White (2700K)

VOLTAGE
12 VAC
230 VAC

LAMP BASE
E40 Base
E27 Base

BEAM ANGLE
30º Angle
60º Angle

MR16 LED Lamp (mm) - 46 (L) x 50 (D - 46g, 58g (E27)

PACKING DATA

Units per box - 12 units
