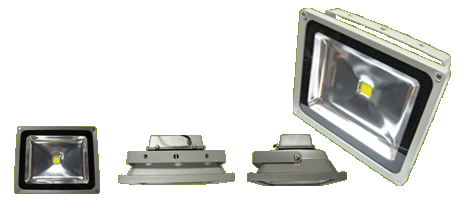

LED Flood L1 50W

OOzlux LEDFlood L1 50W is a direct cost saving replacement for conventional outdoor floodlight. With its compact, different Colour temperatures and ruggedized enclosure, it is able to provide various uses for outdoor applications. While it uses LED illumination, there is no heat generated through it light source and has lower energy consumption. With LED technology, the lifespan is extended which provides minimal replacement.

EFFICIENT & DURABLE
• Replacement of Conventional Outdoor Floodlights
• Aluminium die-cast enclosure with toughened glass cover
• Long lifespan of 40,000 Hours

MULTI-APPLICATIONS

•	Various Colours suitable for Commercial Buildings, Showrooms, Store Display, Hotels and Restaurants
•	Wide operating temperature

TECHNICAL
• Natural Colour rendition
• No UV emissions
• Optimum Power Factor
• IP65 Enclosure

GREEN TECHNOLOGY
• Low energy consumption
• No mercury content
• Less heat dissipation

Techinical Data & Specification

Product Code	Description	Nom. Wattage (W)	Voltage (Vac)	Color Temp. (K)	Power Factor	Approx. Lumens (LM)	Approx. Lifespan (H)1	CRI	Beam Angle 2
OZEW50DBCBMAL	LEDFlood L1 50W Daylight	50	230	6500K	≥0.90	4,000	40,000	≥80	160±3°

OZEW50WBCBMAL	LEDFlood L1 500W Warm White	50	230	3000K	≥0.90	4,000	40,000	≥80	160±3°

OZEW50YBCBMAL	LEDFlood L1 50W Yellow	50	230	595NM	≥0.90	1,500	40,000	≥80	160±3°

OZEW50BBCBMAL	LEDFlood L1 50W Blue	50	230	570NM	≥0.90	1,50	40,000	≥80	160±3°

OZEW50GBCBMAL	LEDFlood L1 50W Green	50	230	530NM	≥0.90	3,500	40,000	≥80	160±3°

OZEW50RBCBMAL	LEDFlood L1 50W ReD	50	230	630NM	≥0.90	1,500	40,000	≥80	160±3°

* Various system configuration is possible. Refer Product Naming Convention for details.
1 Approximate lifespan will be affected both by the LED package and transformer driver.
2 Beam Angle of 140±3° is also available.

	Efficiency	Ozlux PAR38	Conventional PAR

	Total Wattage	30	60
	x 365 Days with 12 hours.day	4380	4380
	Total Consumption (kWh)	219.0	438.0
	x kWh rate of USD$0.10	$21.90	$43.80
	x 1000 units of lamps	$2,190.00	$4,380.00
	Total Energy Cost Savings*	$2,190.00
*Your actual savings may vary depending on energy costs in your geographic location.

PRODUCT NAMING CONVENTION
OZ-AA-BB-C-D-EE-FFF

DIMENSIONS

AA
EW

BB
10
30
50

C
D
W
Y
B
R
G

D
B

EE
CB

FFF
MAI
MAL

PRODUCT CODE
Flood Light

WATTAGE
10 Watts
30 Watts
50 Watts

COLOUR
Daylight (6500K)
Warm White (2700K)
Yellow (595NM)
Blue (470NM)
Red (530NM)
Green (630NM)

VOLTAGE
230 VAC

LAMP BASE
Cable Entry

BEAM ANGLE
145º Angle
160º Angle

LEDFlood Lamp (mm) - 236 (H) x 290 (W) x 183 (D) - 3500g

PACKING DATA

Units per box - 2 units
