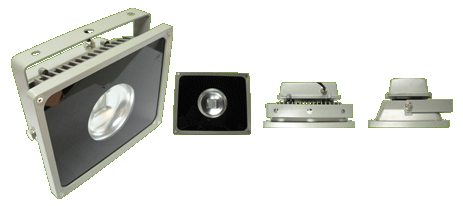

LED Flood M1 30W

Ozlux LEDFlood M1 30W is a direct cost saving replacement for conventional outdoor floodlight. With its compact, different Colour temperatures and ruggedized enclosure, it is able to provide various uses for outdoor applications. While it uses LED illumination, there is no heat generated through it light source and has lower energy consumption. With LED technology, the lifespan is extended which provides minimal replacement.

EFFICIENT & DURABLE
• Replacement of Conventional Outdoor Floodlights
• Aluminium die-cast enclosure with toughened glass cover
• Long lifespan of 40,000 Hours

MULTI-APPLICATIONS

•	Various Colours suitable for Commercial Buildings, Showrooms, Store Display, Hotels and Restaurants
•	Wide operating temperature

TECHNICAL
• Natural Colour rendition
• No UV emissions
• Optimum Power Factor
• IP65 Enclosure

GREEN TECHNOLOGY
• Low energy consumption
• No mercury content
• Less heat dissipation

Techinical Data & Specification

Product Code	Description	Nom. Wattage (W)	Voltage (Vac)	Color Temp. (K)	Power Factor	Approx. Lumens (LM)	Approx. Lifespan (H)1	CRI	Beam Angle 2
OZEW30DBCBMAL	LEDFlood M1 30W Daylight	30	230	6500K	≥0.90	2,400	40,000	≥80	160±3°

OZEW30WBCBMAL	LEDFlood M1 30W Warm White	30	230	3000K	≥0.90	2,400	40,000	≥80	160±3°

OZEW30YBCBMAL	LEDFlood M1 30W Yellow	30	230	595NM	≥0.90	900	40,000	≥80	160±3°

OZEW30BBCBMAL	LEDFlood M1 30W Blue	30	230	570NM	≥0.90	900	40,000	≥80	160±3°

OZEW30GBCBMAL	LEDFlood M1 30W Green	30	230	530NM	≥0.90	2,100	40,000	≥80	160±3°

OZEW30RBCBMAL	LEDFlood M1 30W ReD	30	230	630NM	≥0.90	900	40,000	≥80	160±3°

* Various system configuration is possible. Refer Product Naming Convention for details.
1 Approximate lifespan will be affected both by the LED package and transformer driver.
2 Beam Angle of 140±3° is also available.

	Efficiency	Ozlux PAR38	Conventional PAR

	Total Wattage	30	60
	x 365 Days with 12 hours.day	4380	4380
	Total Consumption (kWh)	131.4	262.8
	x kWh rate of USD$0.10	$13.14	$26.28
	x 1000 units of lamps	$1,314.00	$2,628.00
	Total Energy Cost Savings*	$1,314.00
*Your actual savings may vary depending on energy costs in your geographic location.

PRODUCT NAMING CONVENTION
OZ-AA-BB-C-D-EE-FFF

DIMENSIONS

AA
EW

BB
10
30
50

C
D
W
Y
B
R
G

D
B

EE
CB

FFF
MAI
MAL

PRODUCT CODE
Flood Light

WATTAGE
10 Watts
30 Watts
50 Watts

COLOUR
Daylight (6500K)
Warm White (2700K)
Yellow (595NM)
Blue (470NM)
Red (530NM)
Green (630NM)

VOLTAGE
230 VAC

LAMP BASE
Cable Entry

BEAM ANGLE
145º Angle
160º Angle

LEDFlood Lamp (mm) - 185 (H) x 225 (W) x 126 (D) - 2600g

PACKING DATA

Units per box - 6 units
