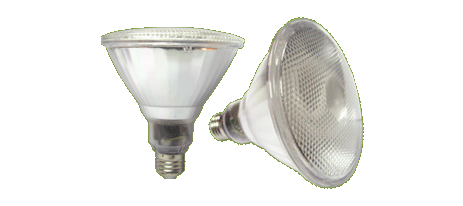

Ozlux PAR 30/38 Compact Fluorescent Lamp

Ozlux PAR 30/38 is a direct cost saving replacement for an efficient outdoor and indoor lamp. While it has uses in many applications, Ozlux PAR 30/38 offer extended lifespan while providing a low operating energy costs. It is suitable as a direct replacement of the conventional PAR 30/38 and fits into any existing fixtures.

EFFICIENT & DURABLE
• Self-ballasted system for 40% in Energy Savings
• Direct Replacement for Conventional Halogen PAR Lamps
• Long operating lifespan

MULTI-APPLICATIONS
• Suitable for Outdoor and Indoor applications

TECHNICAL
• Can fit into existing PAR 30/38 fixture
• Flood beam angle of 45 degrees

GREEN TECHNOLOGY
• Low energy consumption
• Low mercury content
• Less heat dissipation

Techinical Data & Specification

Product Code	Description	Nom. Wattage (W)	Voltage (Vac)	Color Temp. (K)	Approx. Lumens (LM)	Approx. Lifespan (H)	CRI	Base Holder
OZP313D2E2M	PAR30 13W CFL Daylight	13	230	6500	600	8,000	≥80	E27

OOZP313W2E2M	PAR30 13W CFL Warm White	13	230	2700	500	8,000	≥80	E27

OZP418D2E2M	PAR38 18W CFL Daylight	18	230	6500	800	8,000	≥80	E27

OZP418D2E2M	PAR38 18W CFL Warm White	18	230	2700	700	8,000	≥80	E27

* Various system configuration is possible. Refer Product Naming Convention for details.

	Efficiency	Ozlux PAR38	Conventional PAR

	Total Wattage	18	50
	x 365 Days with 12 hours.day	4380	4380
	Total Consumption (kWh)	78.8	219.0
	x kWh rate of USD$0.10	$788	$21.90
	x 1000 units of lamps	$7,884.00	$21,900.00
	Total Energy Cost Savings*	$14,106.00
*Your actual savings may vary depending on energy costs in your geographic location.

PRODUCT NAMING CONVENTION
OZ-AA-BB-C-D-EEE

DIMENSIONS

AA
P3
P4

BB
13
18

C
D
W

D
1
2

EEE
E2M

PRODUCT CODE
PAR30
PAR38

WATTAGE
13 Watts
18 Watts

COLOUR
Daylight (6500K)
Warm White (2700K)

VOLTAGE
110 Volts System
230 Volts System

LAMP BASE
E40 Base

PAR 30 CFL (mm) - 130 (H) x 95 (D)
PAR 38 CFL (mm) - 131 (H) x 121 (D)

PACKING DATA

Units per box - 12 units
